Cable Tools

Fortune Rope & Metal Company offers tools for cutting and crimping wire rope, including wire rope cutters and hand swagers. Felco Wire Rope Cutters are available for cutting wire rope up to 3/16", 1/4", 3/8", and 5/8" in diameter. Other wire rope cutters are available for cutting wire rope up to 3/16", 3/8", 15/32", and 5/8" in diameter. Hand swagers are offered with or without cutters and are used for cutting wire rope and crimping aluminum and copper sleeves and stops. The hand swagers offered by Fortune Rope have a maximum wire rope cutting capability of 1/32" to 5/16", and can crimp sleeves from 1/32" to 3/8", depending on the model.

Felco Wire Rope Cutters

Felco Wire Rope Cutters


Part Number Overall Length Wire Rope Cap. Weight (lbs)
C7 8" 3/16" 0.7
C9 13" 1/4" 1.5
C12 19" 3/8" 3
C16 23" 5/8" 5

Wire Cutters


Part Number Overall Length Wire Rope Cap. Weight (lb)
#316 cable cutter 8" 3/16" 6
22-WRC75 7 1/2" 3/16" 1
22-WRC-13 13" 3/8" 1
22-WRC20 20" 15/32" 3 3/4
22-WRC26 26" 5/8 5 3/4

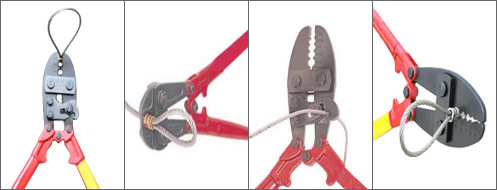

Hand Swagers

Hand Swagers

No Cutter - Part # With Cutter - Part # Overall
Length
Max. Cutting Oval Sleeves Weight (lb)
-- 22-ST9 9" 1/32" 1/32", 3/64", 1/16" 1
22-ST14 22-ST14C 14" 1/8" 1/16", 3/32", 1/8" 2 1/2
22-ST24 22-ST24C 24" 7/32" 1/16", 3/32", 1/8", 5/32", 3/16" 6 3/4
22-ST30 22-ST30C 30" 5/16" 5/32", 1/4", 5/16" 10
22-ST36 -- 36" -- 3/8" 13.5
